🔥 INSIDE A FENDER STRATOCASTER 🎸 (Only real guitar nerds will appreciate this)

This is not just a guitar.

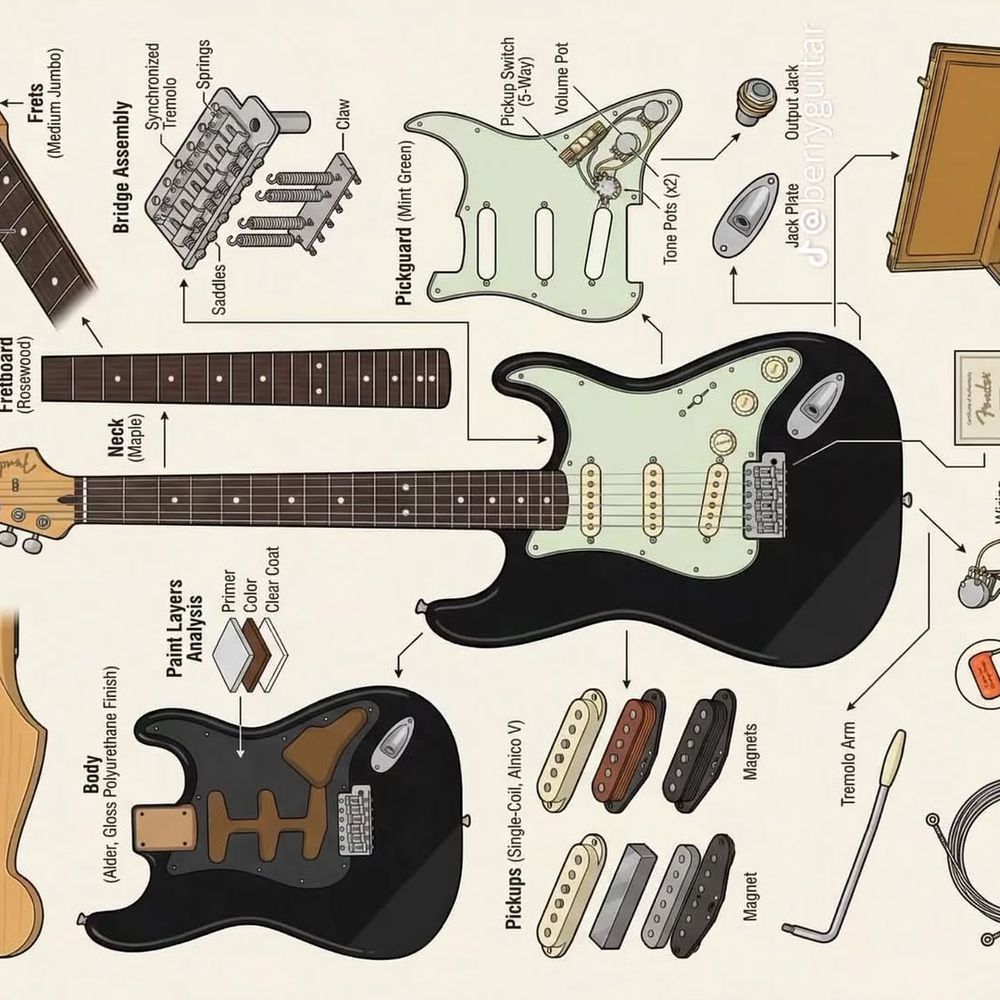

This is a fully disassembled Stratocaster — every screw, every magnet, every detail exposed. The Stratocaster was introduced in 1954, and Fender describes it as the blueprint for modern music thanks to its contours, tones, playability, and long-running influence.

👉 And here’s the truth most people don’t realize:
Tone is not magic. Tone is engineering.

🧠 Headstock, Neck and Playing Feel

Tuner Mechanisms (Six)
These are the tuning machines that regulate string tension and keep the guitar at pitch. On current Strat specs, Fender highlights tuning stability as a key part of the instrument’s design.

Maple Neck + Rosewood Fretboard
This is the classic combination shown in the image: a maple neck with a rosewood fretboard. Fender’s tonewood descriptions say maple is punchy, bright, and has a strong high-end bite, while rosewood feels softer to the touch and has a warmer tone.

Frets (Medium Jumbo)
The image shows medium jumbo frets, and Fender lists medium jumbo frets on many Strat models with rosewood or maple boards. These give a familiar modern feel and support easy bends and confident fretting.

Inlays (Mother of Pearl Dots)
The dot inlays are positional markers that help you navigate the fretboard fast, especially on stage. Fender specs list dot inlays as standard visual position markers.

Neck Plate
That small metal plate does a big job: it anchors the bolt-on neck to the body. Fender also points out the Strat’s modular bolt-on build as one of the reasons it became so customizable.

Wood Matters: What the Strat Is Made Of

Alder Body
Your image shows an alder body, and Fender describes alder as full and rich, with fat low-end, cutting mids, and good overall warmth and sustain. Fender also calls alder one of the traditional Stratocaster body woods.

Maple Neck
Maple is one of Fender’s core neck woods, and Fender says it delivers a bright, punchy response with extra high-end bite. That is one reason Strat necks feel snappy and articulate under the fingers.

Rosewood Fretboard
Fender describes rosewood as warmer and softer to the touch than maple. In practice, that is why many players love the maple/rosewood combo: the neck stays crisp, while the board adds a smoother feel.

Other Strat Body Woods You’ll Find

Fender also lists other woods used on Strat-style guitars:

Ash = snappier tone, bright edge, warm bass, long sustain.

Poplar = resonant, meaty tone, often used as an alder-like alternative.

Basswood = often chosen where availability matters, with tonal response Fender says is similar to alder.

Mahogany = deep warm mids, sustain, and bite. Fender currently offers some Strat variants in chambered mahogany as well.

So yes — pickups matter a lot. But the wood recipe still shapes the way a Strat feels, resonates, and responds in your hands. Fender’s own materials pages describe those woods as a meaningful part of the instrument’s voice and feel.

The Electronics: Where the Strat Really Comes Alive

Single-Coil Pickups (Alnico V)
The image shows three single-coil pickups, and Fender’s Strat pages describe Player Series Alnico V Single-Coil Strat pickups as producing crystalline highs, musical mids, and tight lows. Fender also describes the Strat as built around three expressive single-coils with famously versatile tones.

Why the Electronics Are So Important
A Strat pickup creates sound by converting the vibration of the strings into an electrical signal. Fender support material on guitar electronics describes pickups as the core of the electric circuit, while volume and tone components shape the signal after that.

Pickguard-Mounted Electronics
One of the Strat’s clever design choices is that the pickups and controls are mounted directly to the pickguard. Fender explicitly calls this out as part of the Strat’s design and tonal character.

5-Way Pickup Switch
The image shows the 5-way switch, and Fender’s official specs spell out the classic Strat switching layout:

Bridge pickup

Bridge + middle

Middle

Middle + neck

Neck pickup

That switching layout is a huge reason the Strat became a tone machine: bright bridge attack, smoother neck tone, and those unmistakable in-between sounds. Fender specifically describes the 5-way switch as covering everything from glassy neck cleans to aggressive bridge tones.

Volume Pot + Two Tone Pots
Fender’s Strat electronics specs list Master Volume, Tone 1 for neck/middle pickups, and Tone 2 for the bridge pickup on modern SSS models. That means the controls are not just there for loudness — they let the player shape brightness and smoothness depending on the pickup position.

Wiring Harness + Capacitor
The image includes the wiring harness and an Orange Drop capacitor. Fender-oriented electronics guides explain that the capacitor is a passive component that helps shape the guitar’s tone by affecting high-frequency roll-off in the tone circuit. In simple words: it helps determine how bright or dark the guitar becomes when you use the tone knobs.

Output Jack + Jack Plate
This is the final exit point of the guitar’s signal — where the analog signal leaves the instrument and goes to the amp. Without this point, the electronics stay trapped inside the guitar. Fender includes the output jack as one of the key electric-guitar control components.

Bridge, Tremolo and Hardware

Bridge Assembly (Synchronized Tremolo)
Fender presents the synchronized tremolo as one of the Stratocaster’s defining innovations. On Fender’s Strat page, the company says that the tremolo bridge gave players a new level of expression while helping the guitar return in tune.

Springs, Claw and Tremolo Arm
The image shows the rear springs, claw, and tremolo arm that make the tremolo system work. Fender’s synchronized tremolo design relies on the balance between string tension and the spring system in the back cavity.

Saddles
Fender specs for current Strat tremolos include bent steel saddles, which are part of the bridge system that supports the strings and helps define setup and intonation.

Strings (Nickel-Plated Steel)
The image labels nickel-plated steel strings, and Fender includes nickel-plated steel strings as standard on modern Strat specs. String material and gauge have a direct effect on response and feel.

Fun Facts About the Stratocaster

The Stratocaster was unveiled in 1954, and Fender says it became the blueprint for modern music.

Fender describes the Strat as one of the most customizable guitars around because of its bolt-on modular design and easily swappable components.

Fender specifically points out that the Strat’s pickups and controls being mounted to the pickguard is unusual compared with many other guitars.

Fender calls the Strat’s body contours and double-cutaway design part of its timeless comfort and visual identity.

Many current Strat models still keep the same core formula: alder body, maple neck, rosewood or maple fingerboard, three single-coils, and synchronized tremolo.

Final Truth

A Stratocaster is not just wood, wire, and chrome.
It is a system — where tonewoods, magnets, electronics, hardware, and human touch all collide to create one of the most iconic sounds in music history. Fender’s own Strat pages still frame that recipe as the reason the instrument remains timeless.
